A Critical Appraisal Plot Visualiser for Risk of Bias Assessments

About Critiplot

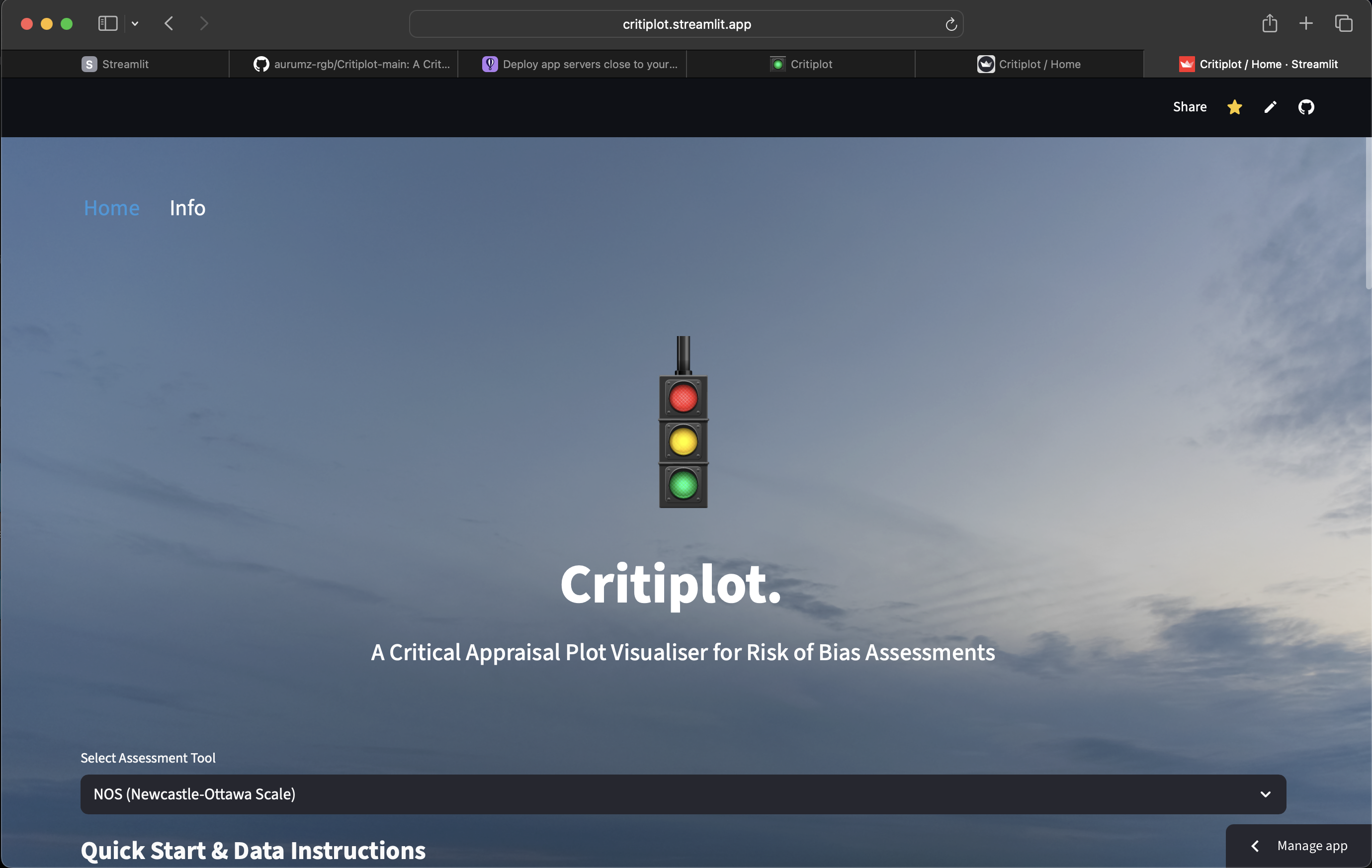

Critiplot is a comprehensive web tool for visualizing multiple risk-of-bias assessment tools.
It helps researchers generate traffic light plots and weighted bar plots for various assessment methodologies including NOS, GRADE, ROBIS, JBI, and MMAT.
Built on Python, it complements evidence synthesis workflows while ensuring reproducibility and consistent visualization of your datasets.

Critiplot supports the following assessment tools:

  • NOS (Newcastle-Ottawa Scale) - For assessing the quality of non-randomized studies
  • GRADE (Grading of Recommendations Assessment, Development, and Evaluation framework) - For rating the certainty of evidence in systematic reviews
  • ROBIS (Risk Of Bias In Systematic reviews) - For assessing risk of bias in systematic reviews
  • JBI Case Report (Joanna Briggs Institute) - For critical appraisal of case reports
  • JBI Case Series (Joanna Briggs Institute) - For critical appraisal of case series
  • MMAT (Mixed Methods Appraisal Tool) - For appraising mixed methods studies

Key features of Critiplot include:

  • Generation of intuitive traffic light plots for each study's risk-of-bias assessment.
  • Weighted bar plots to summarize overall domain-level distributions across studies.
  • Multiple visualization themes for each assessment tool.
  • Publication-ready visualizations suitable for manuscripts, presentations, and reports.
  • Open-source design to facilitate reproducibility and transparency in evidence synthesis.

With Critiplot, researchers can quickly interpret and communicate study-level risk-of-bias information across multiple assessment frameworks, ensuring both clarity and scientific rigor.

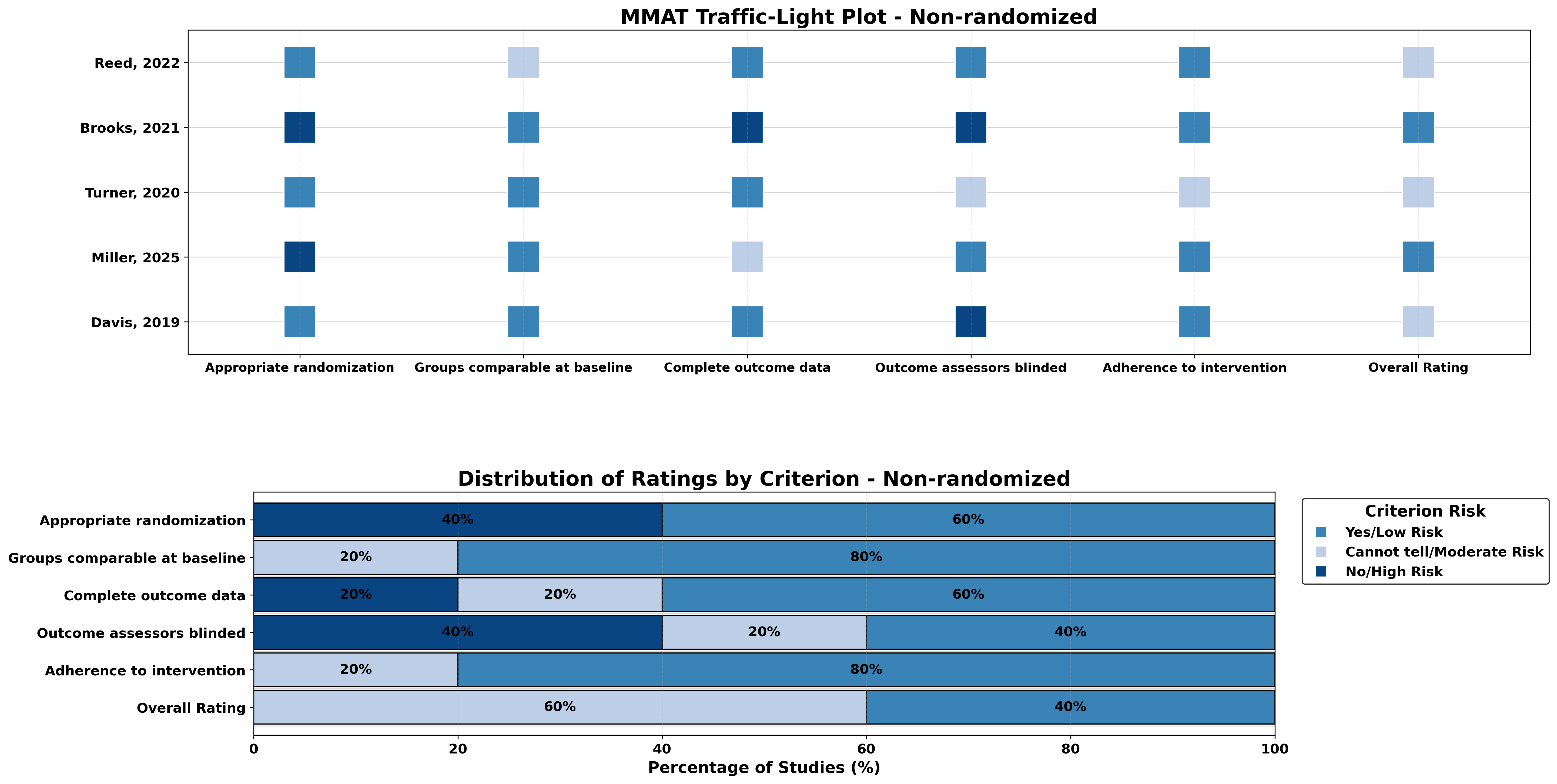

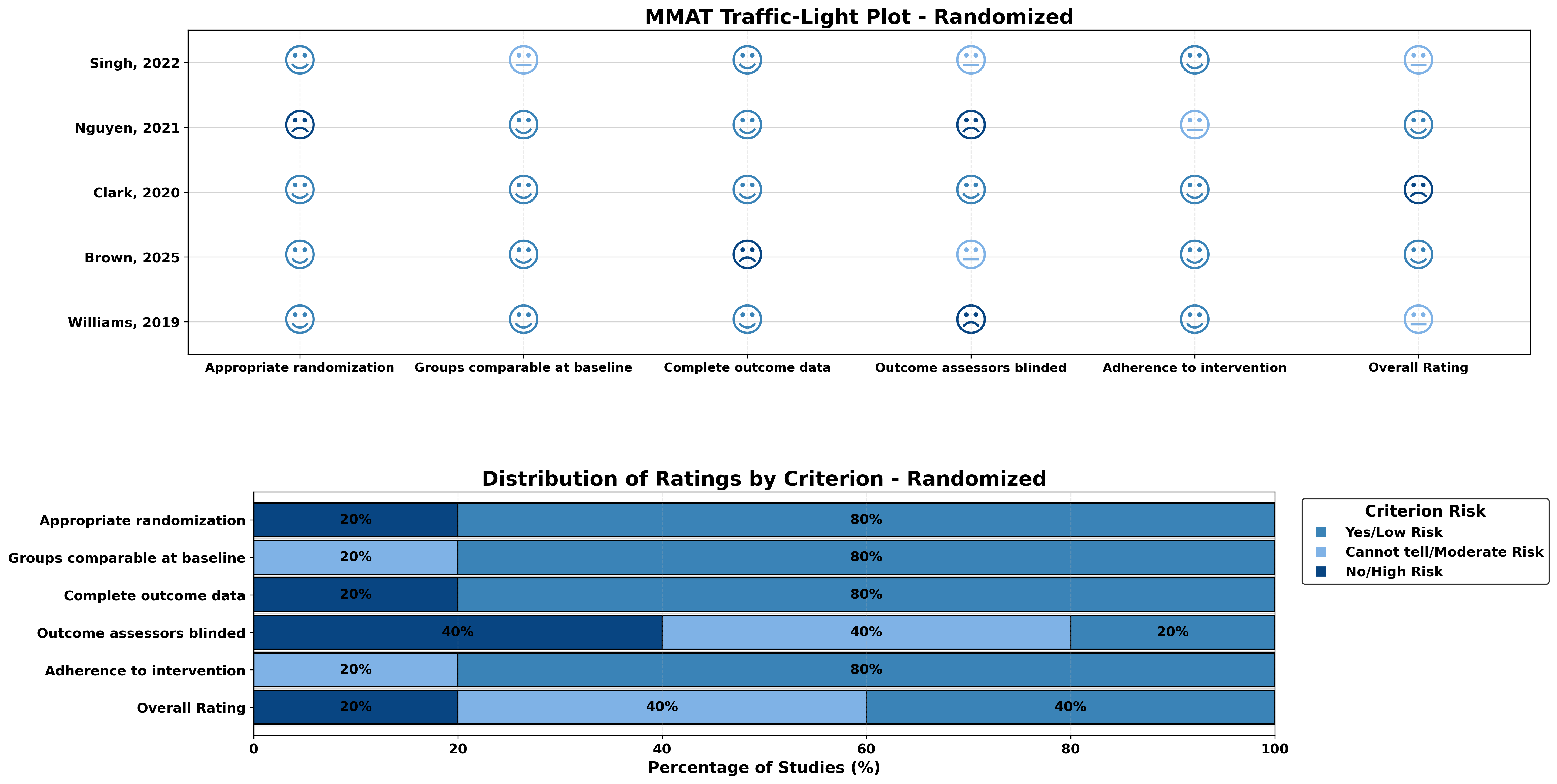

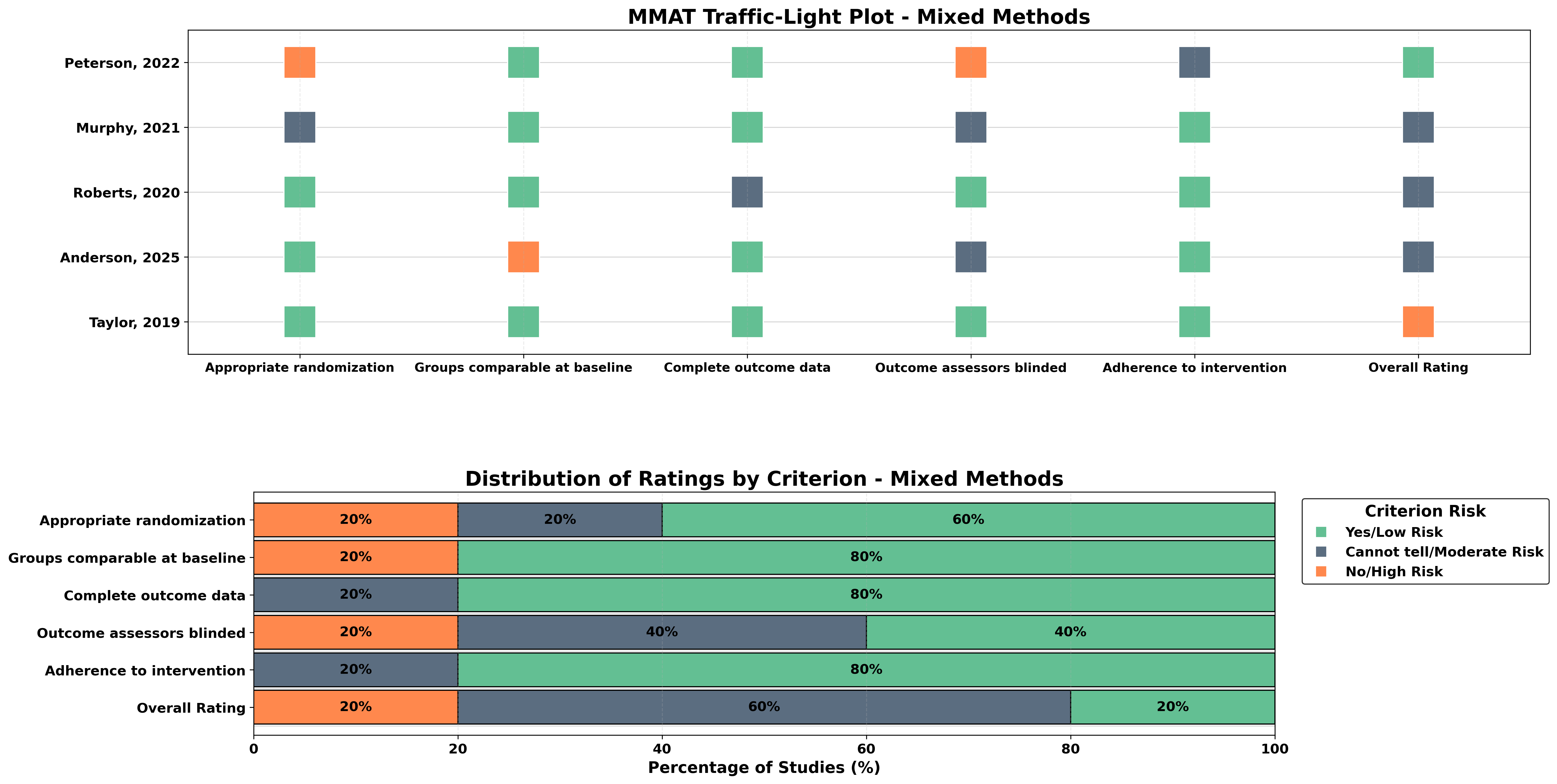

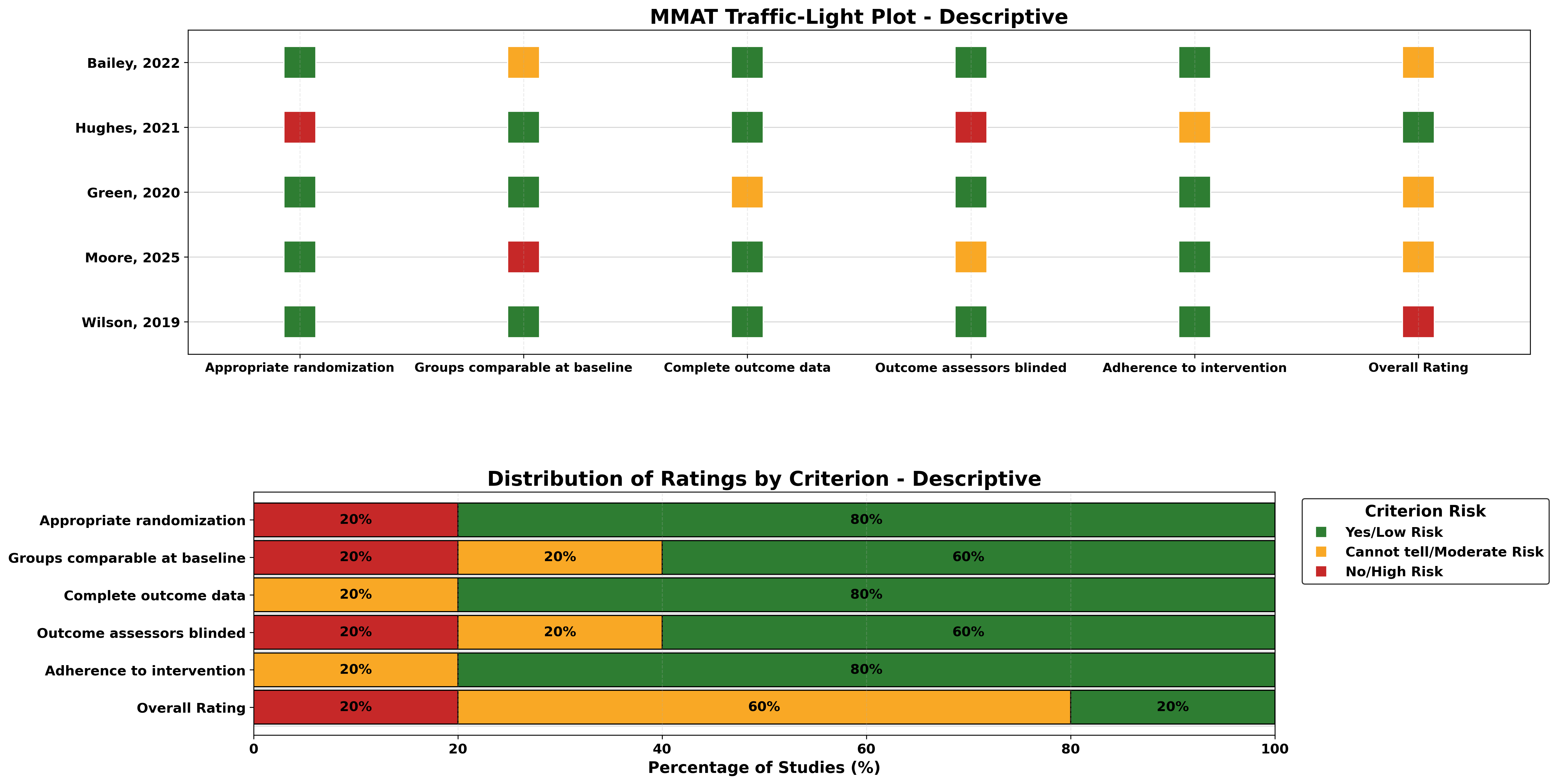

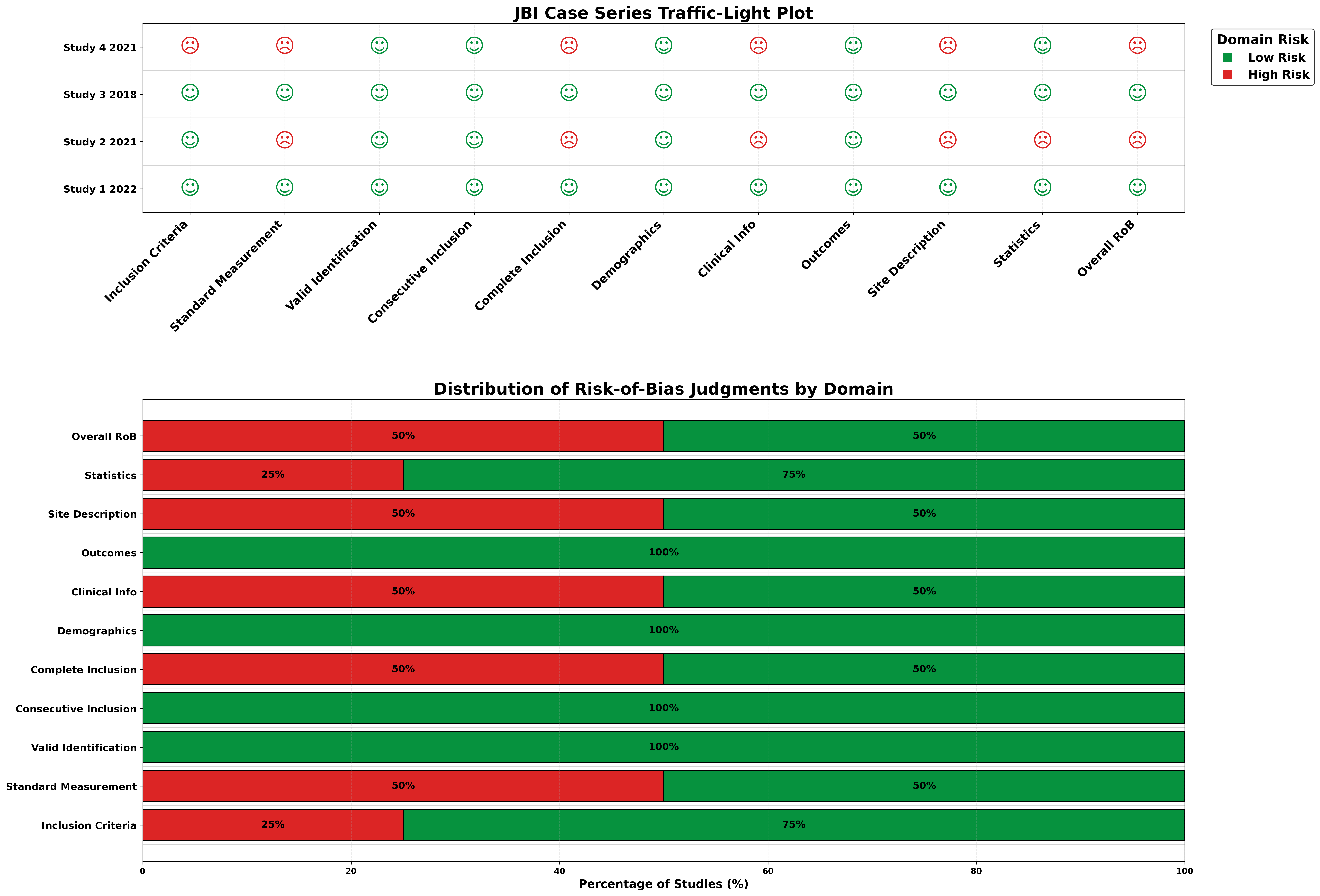

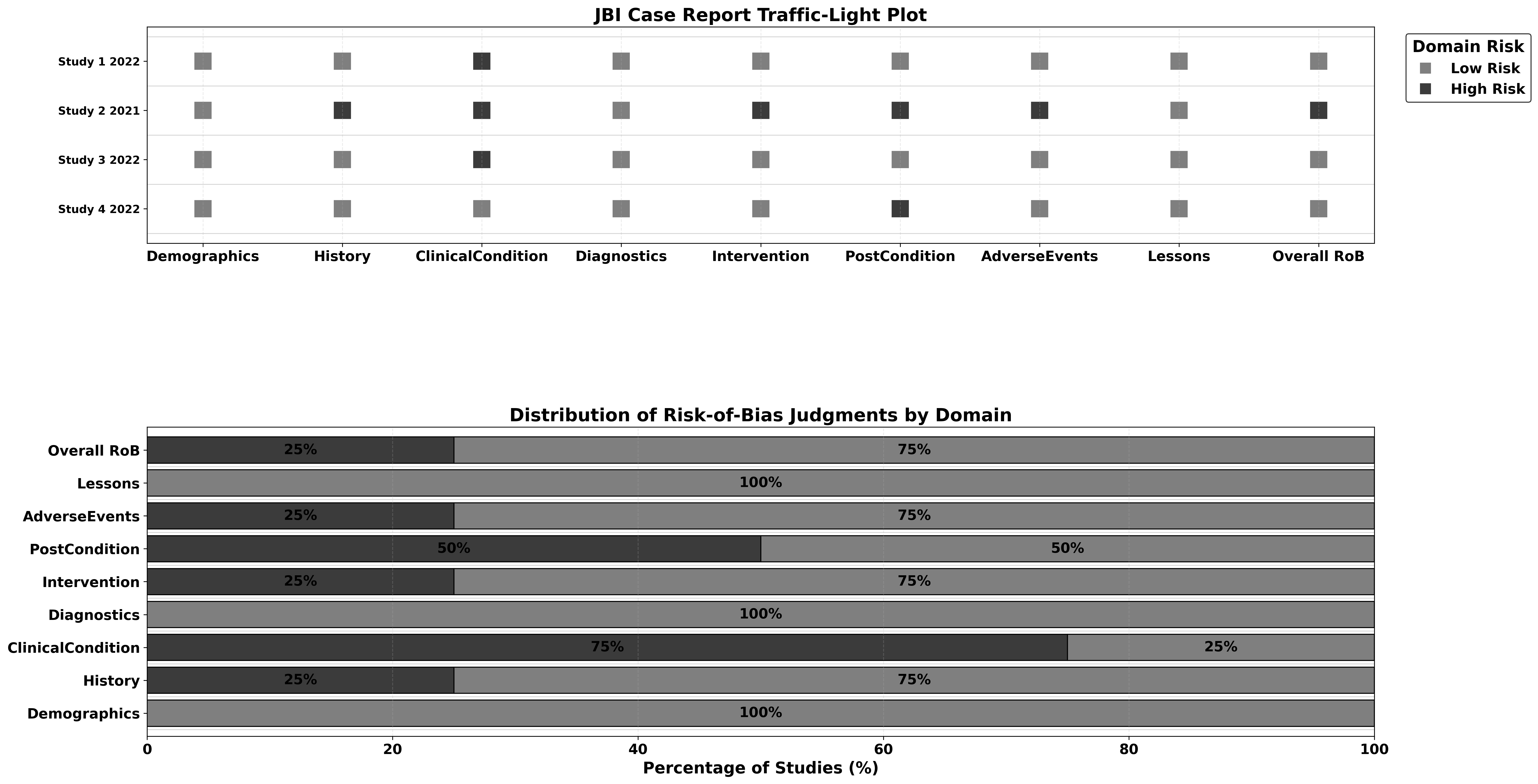

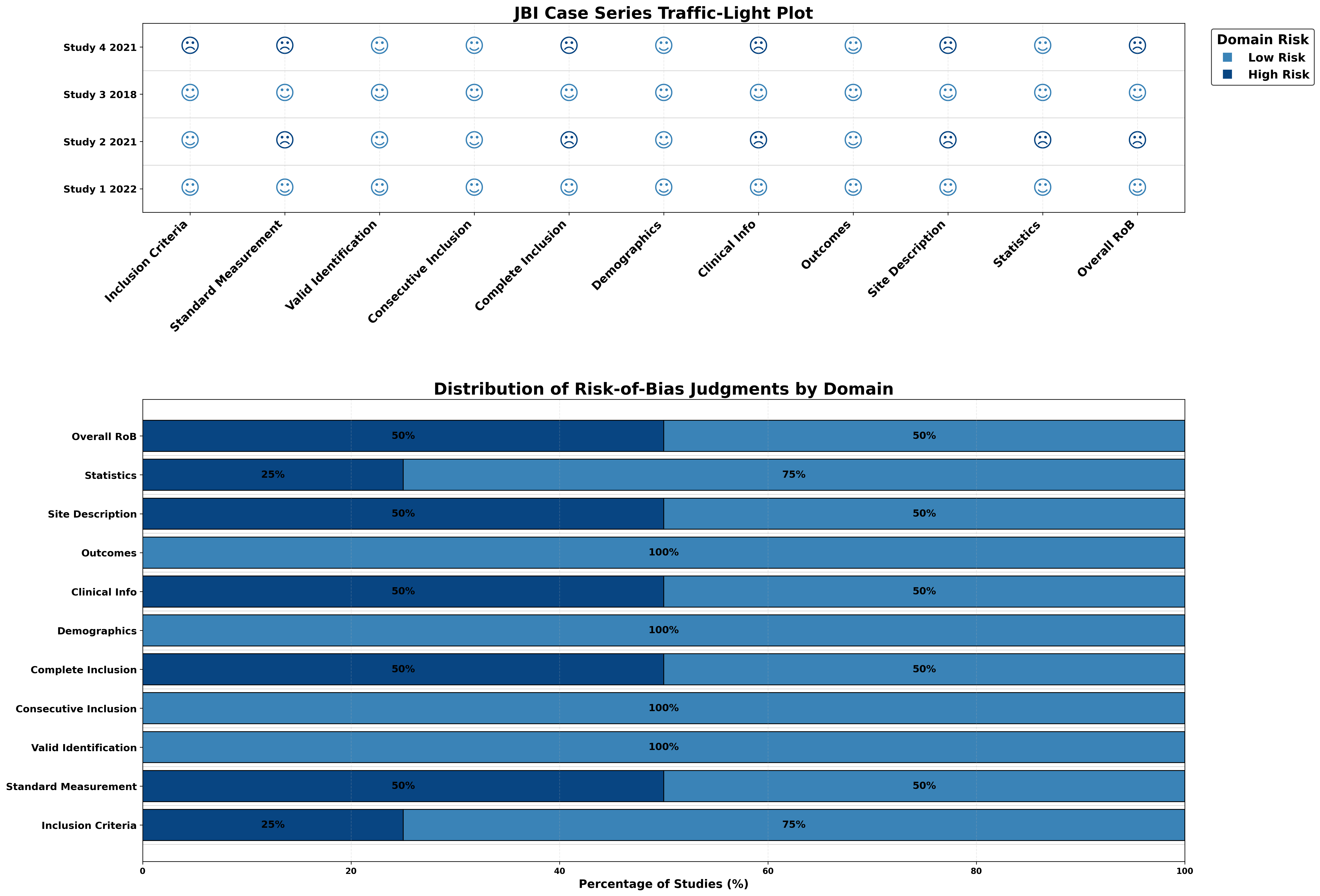

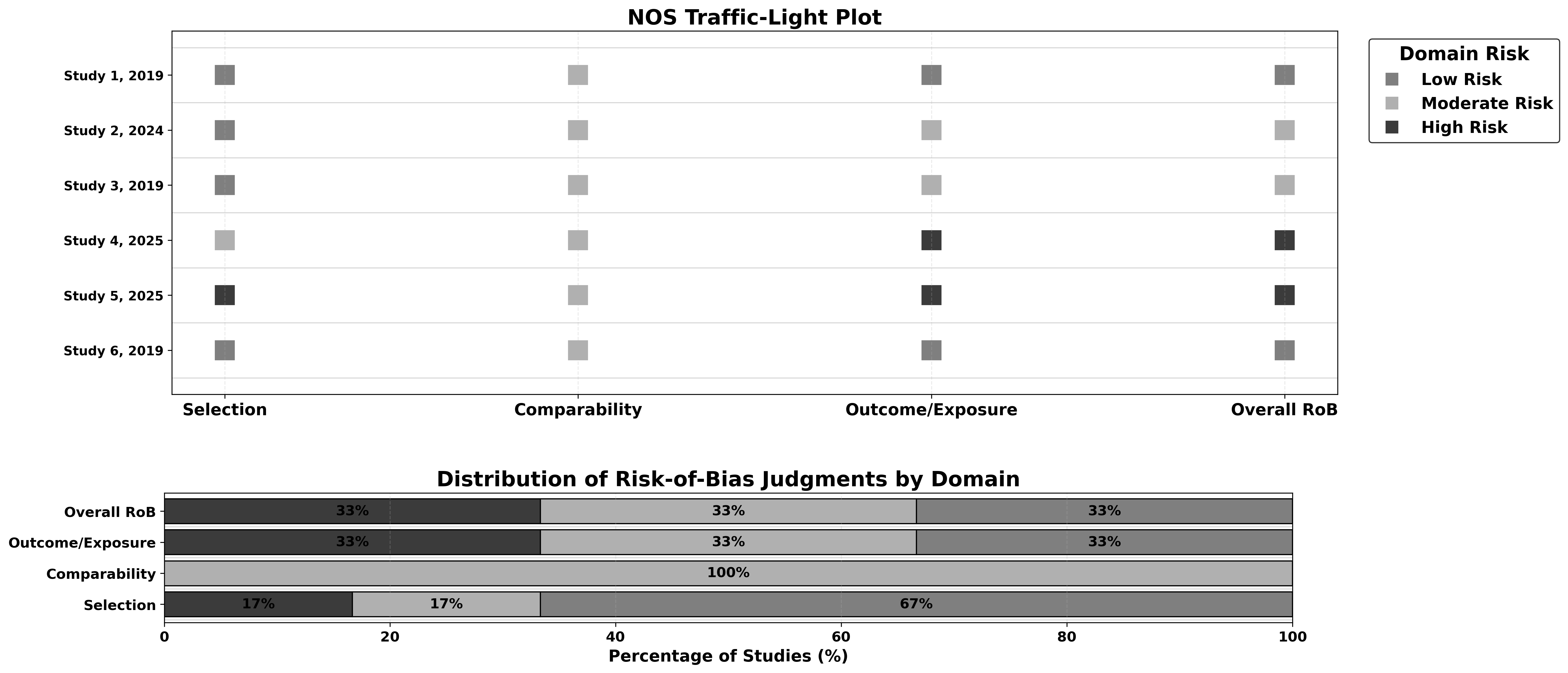

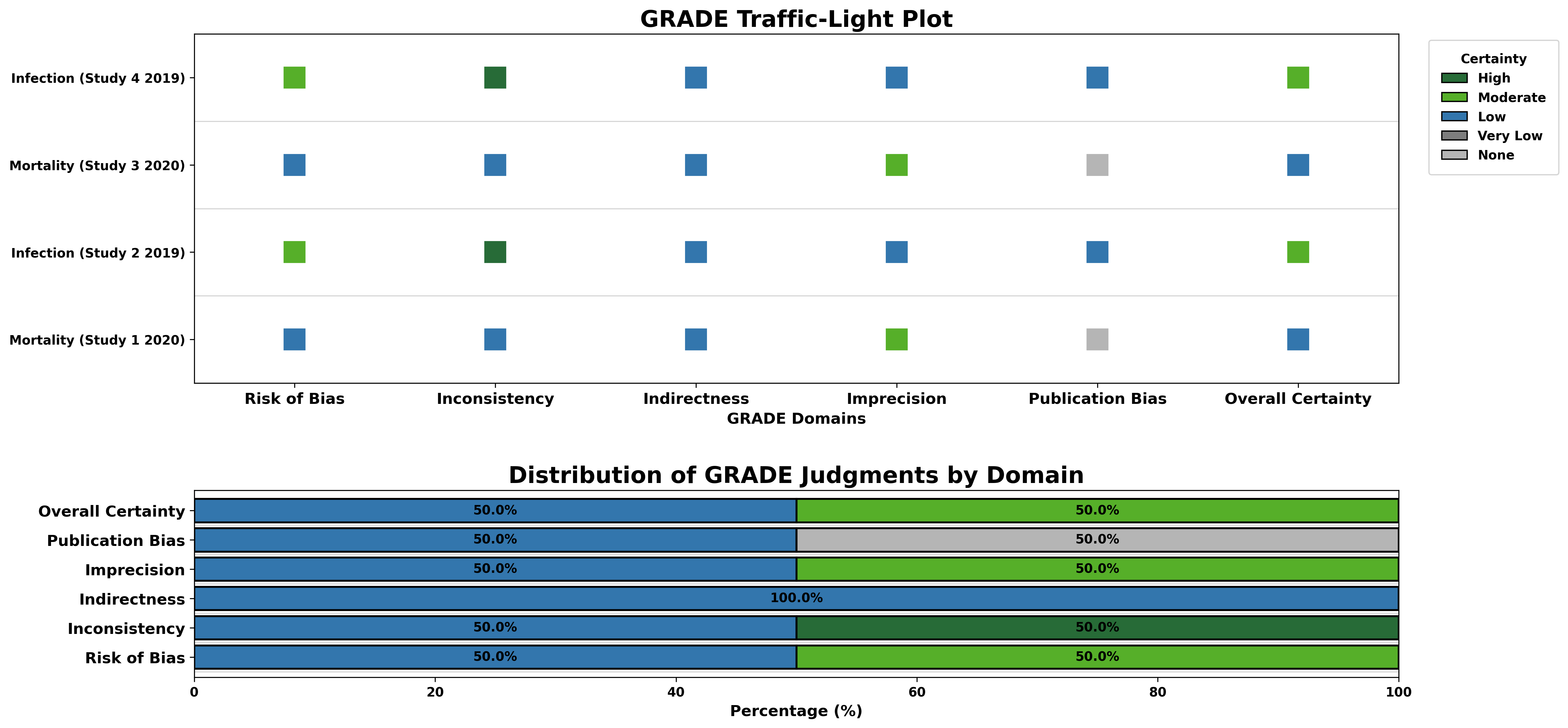

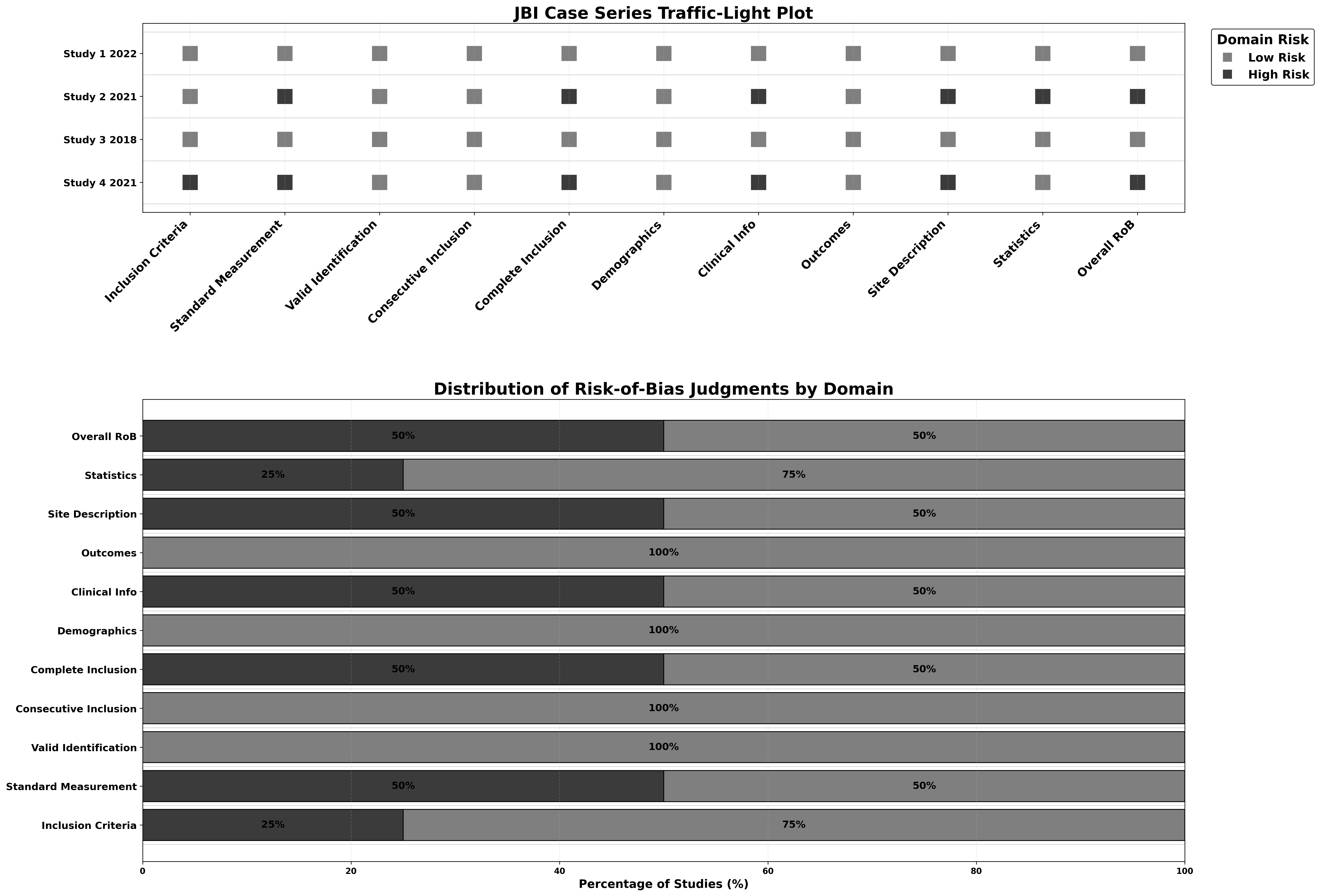

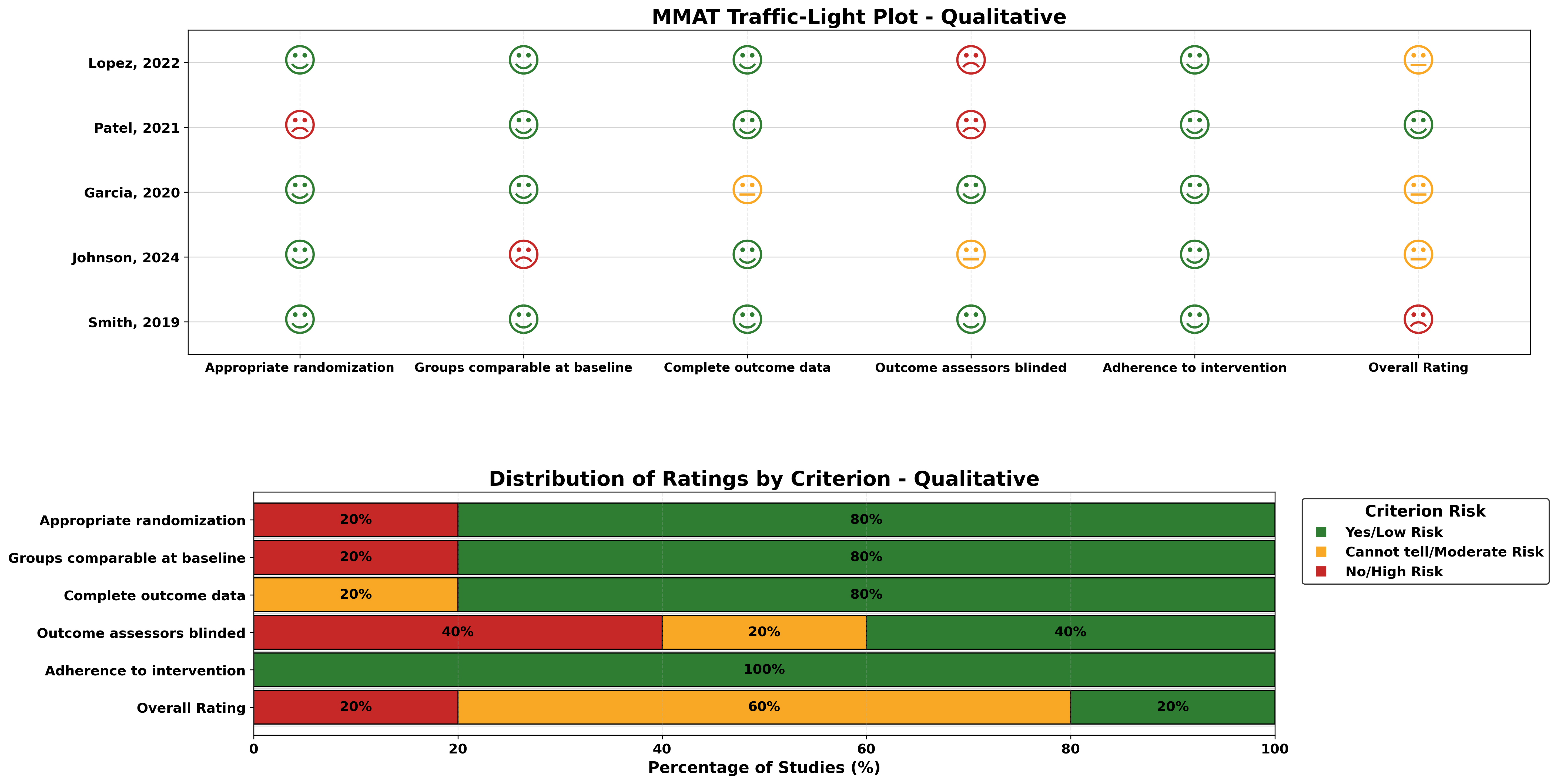

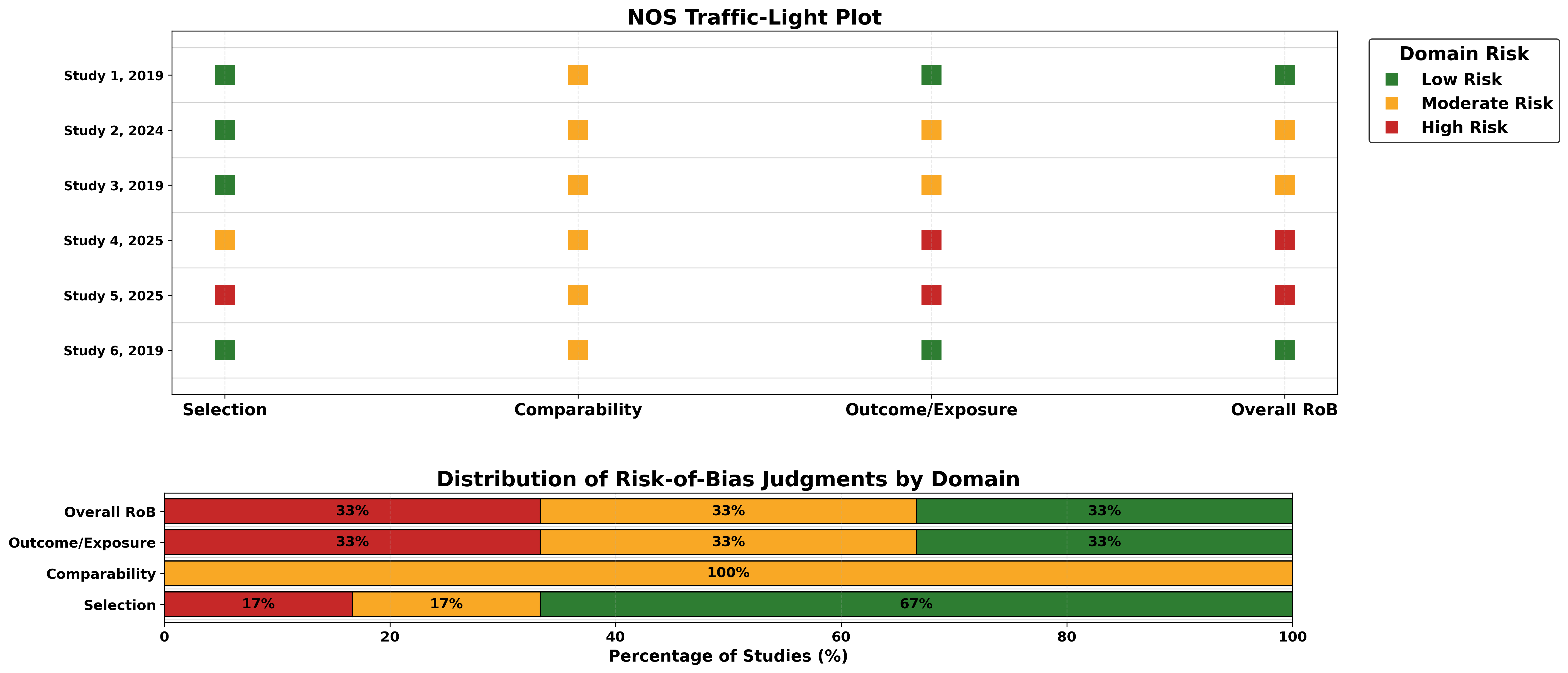

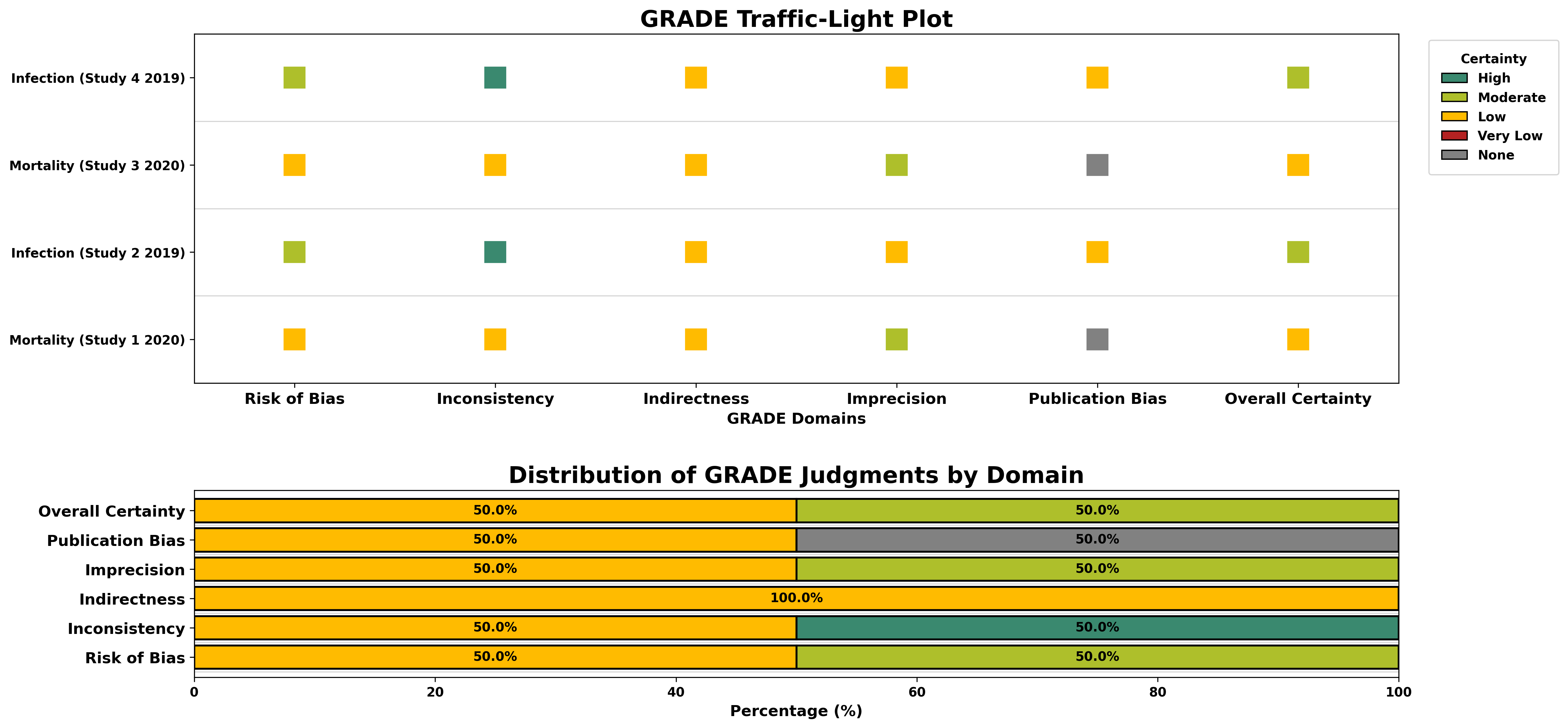

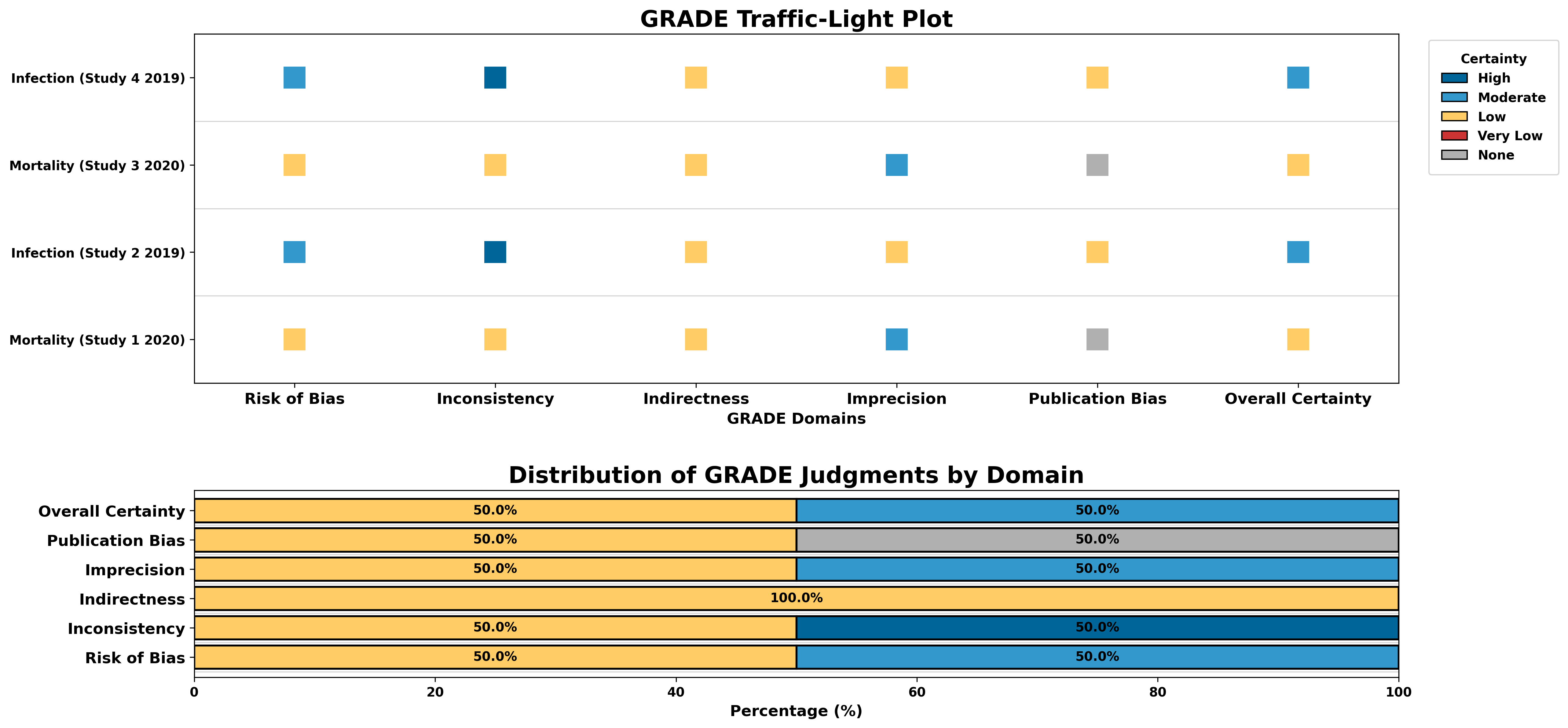

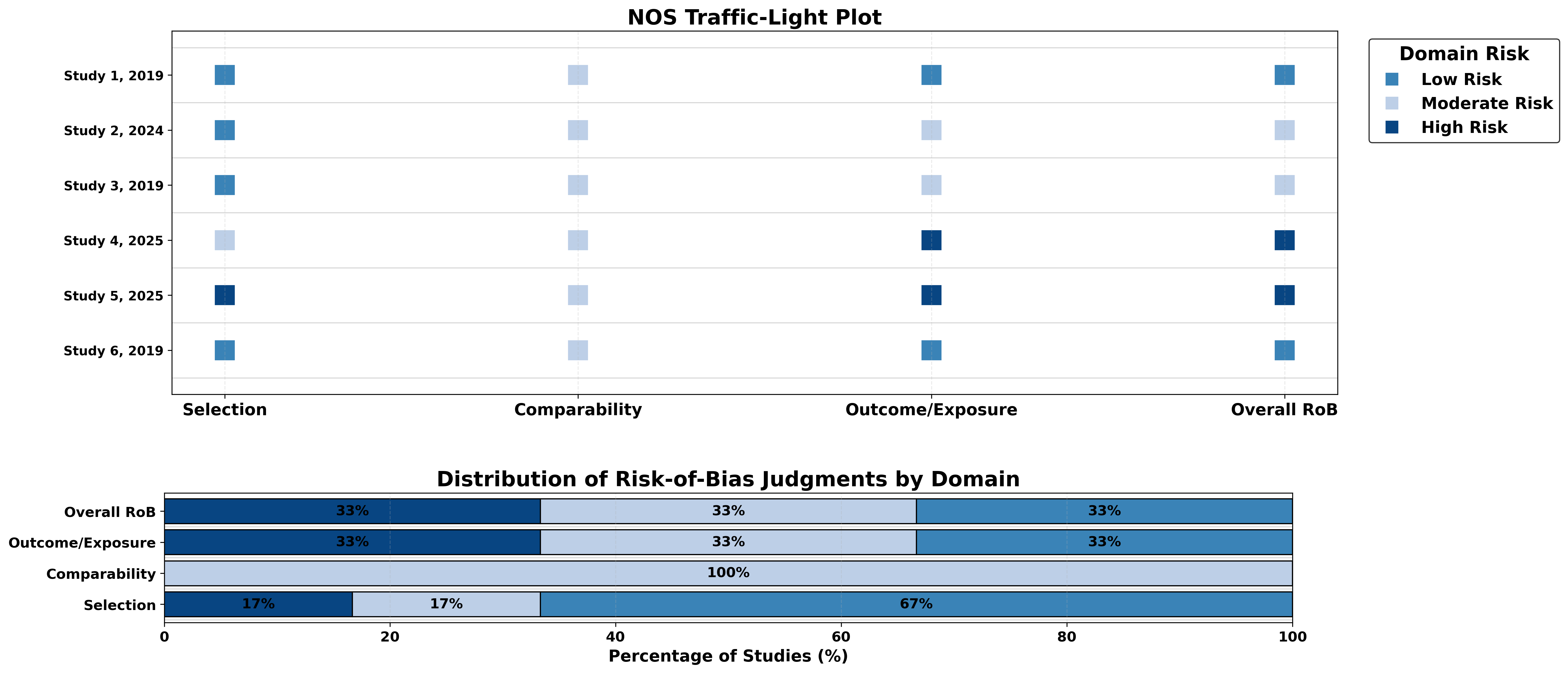

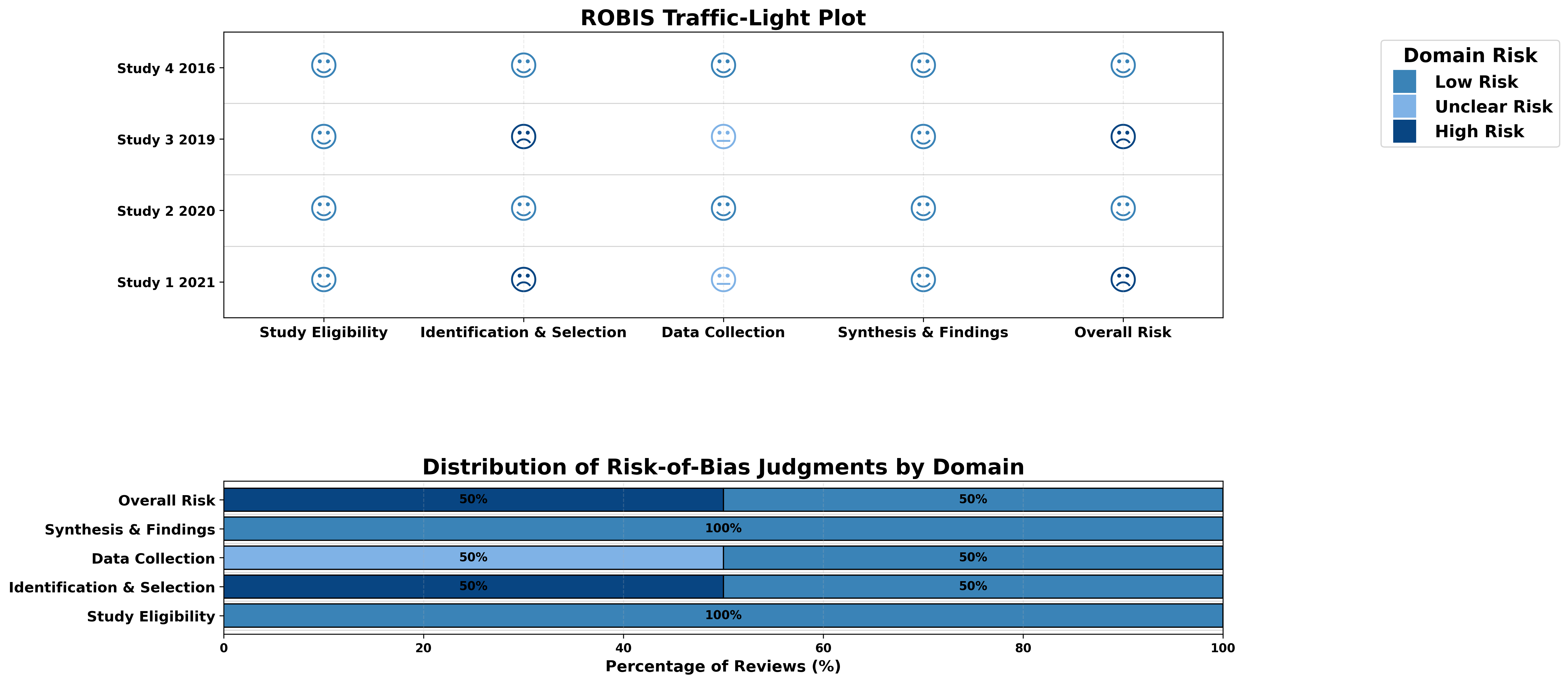

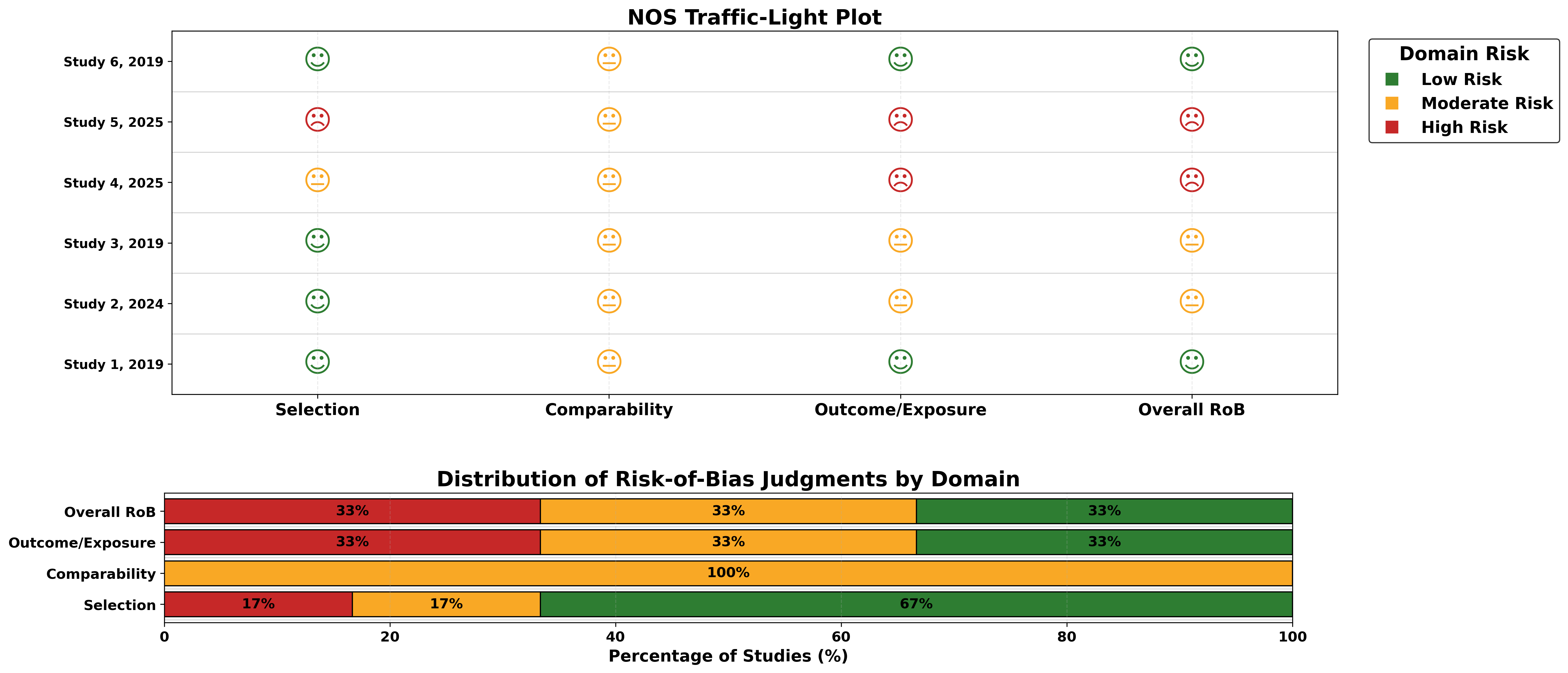

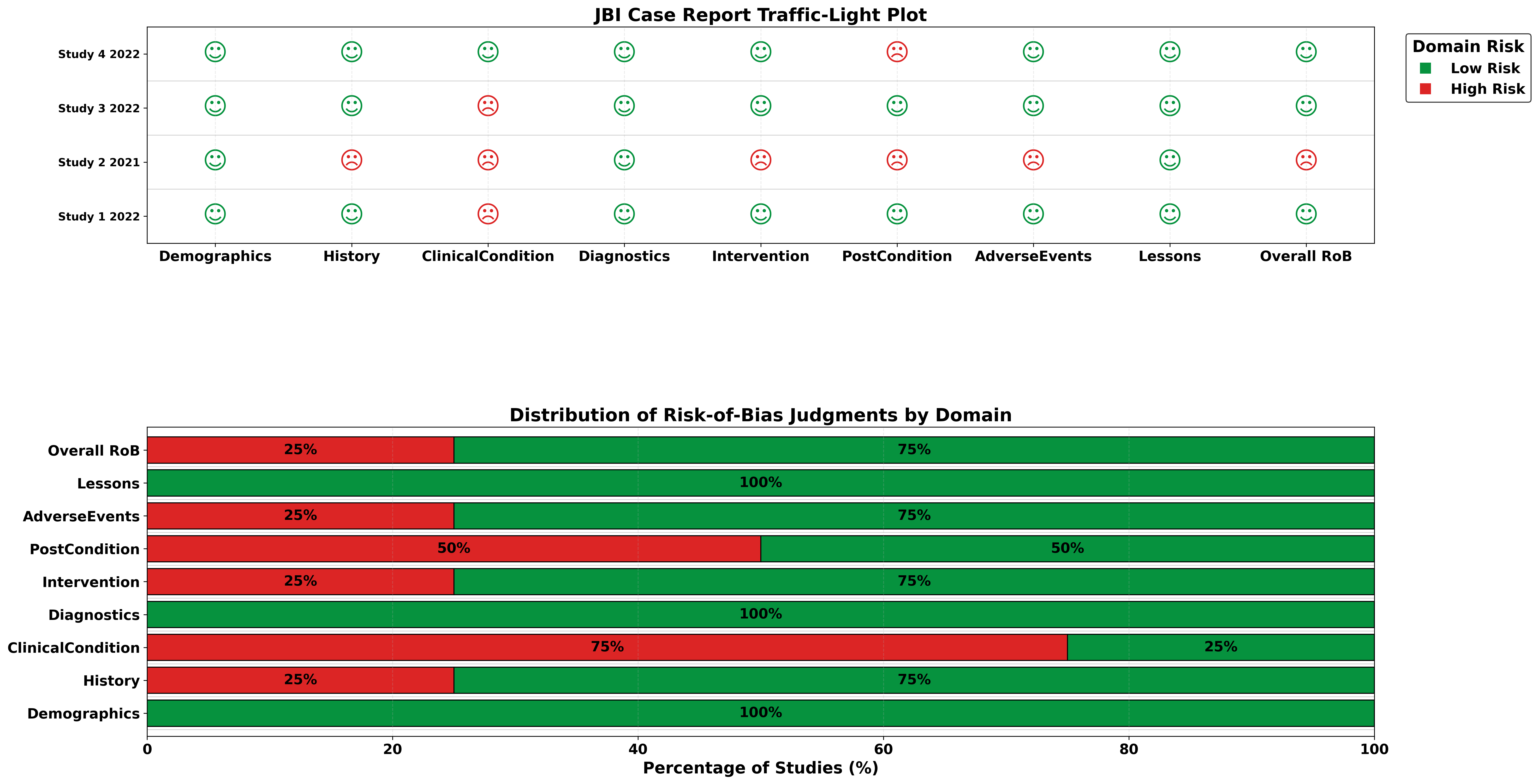

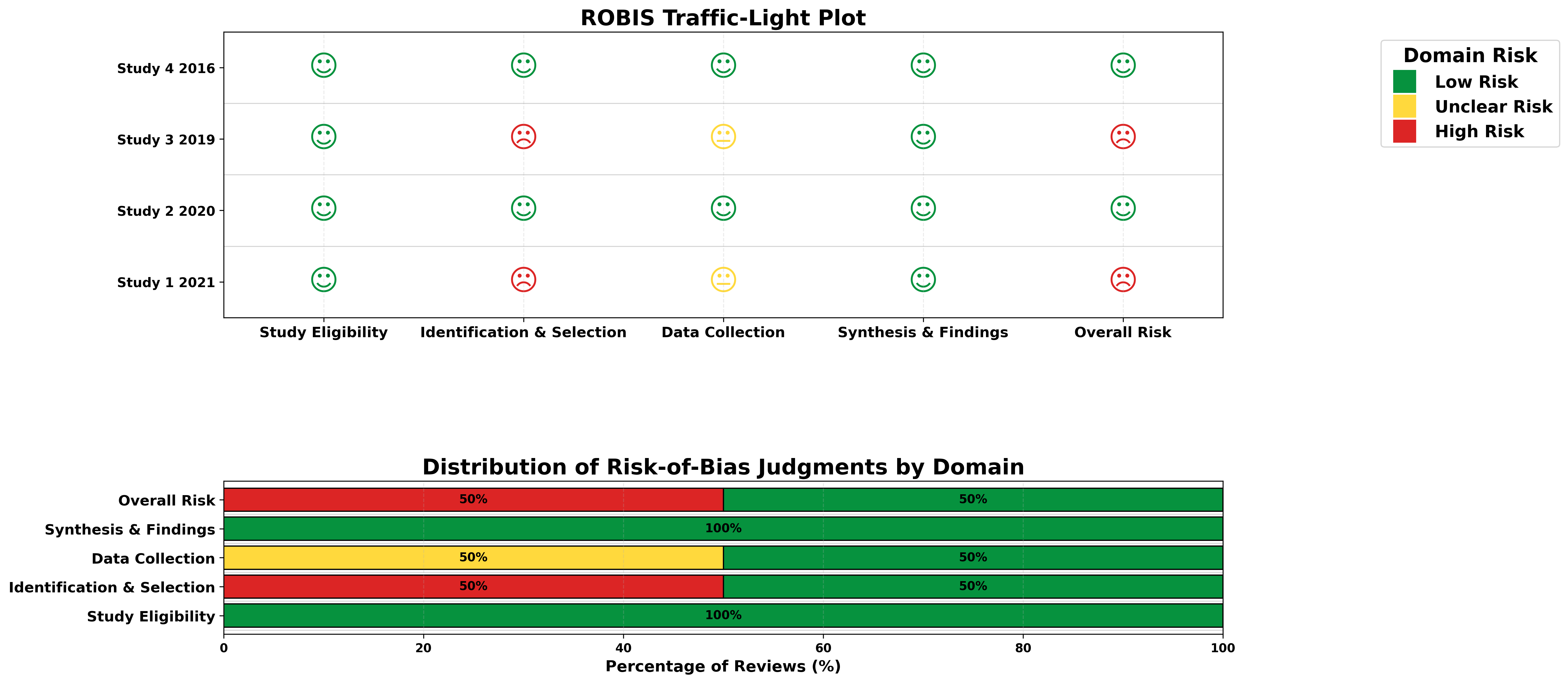

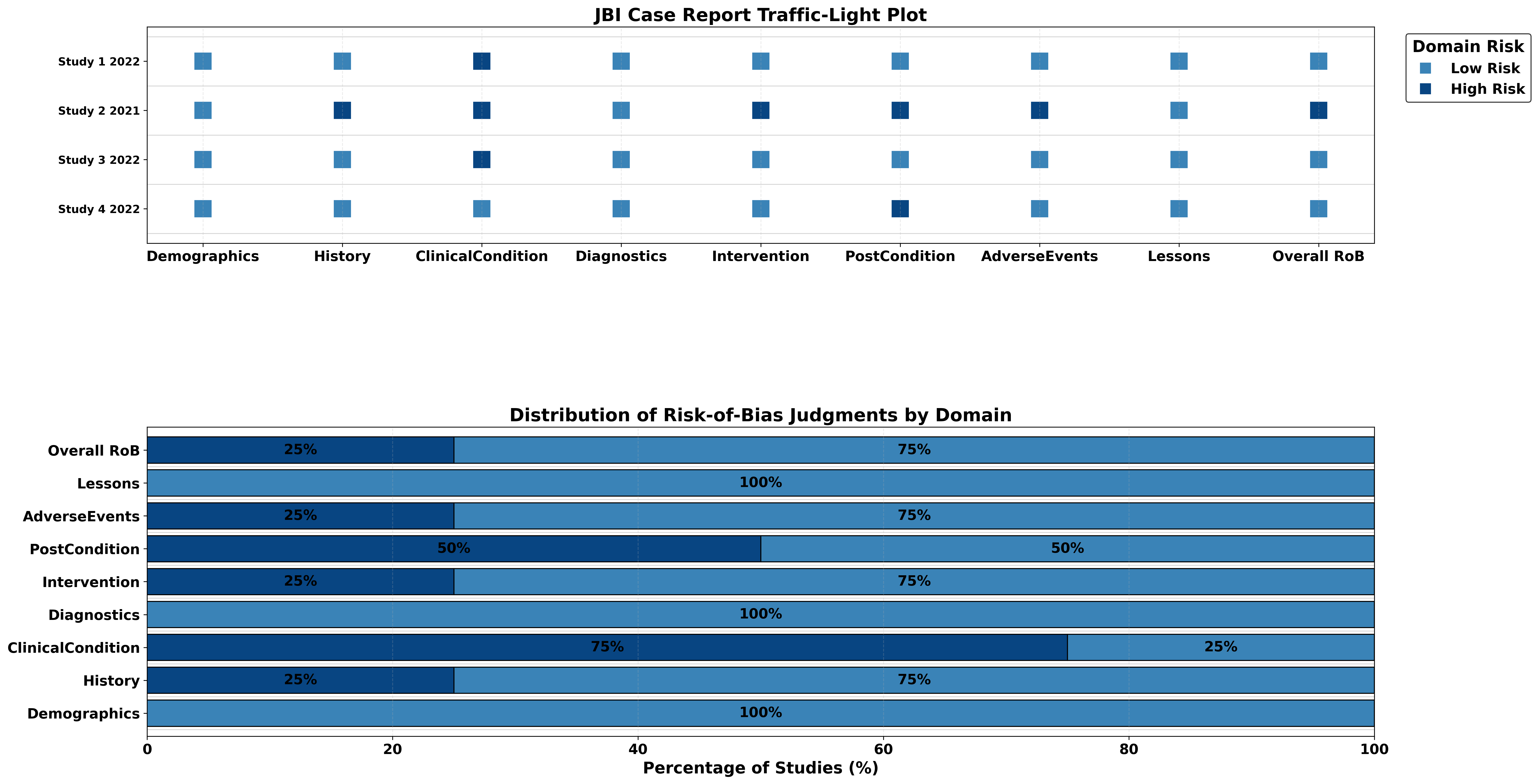

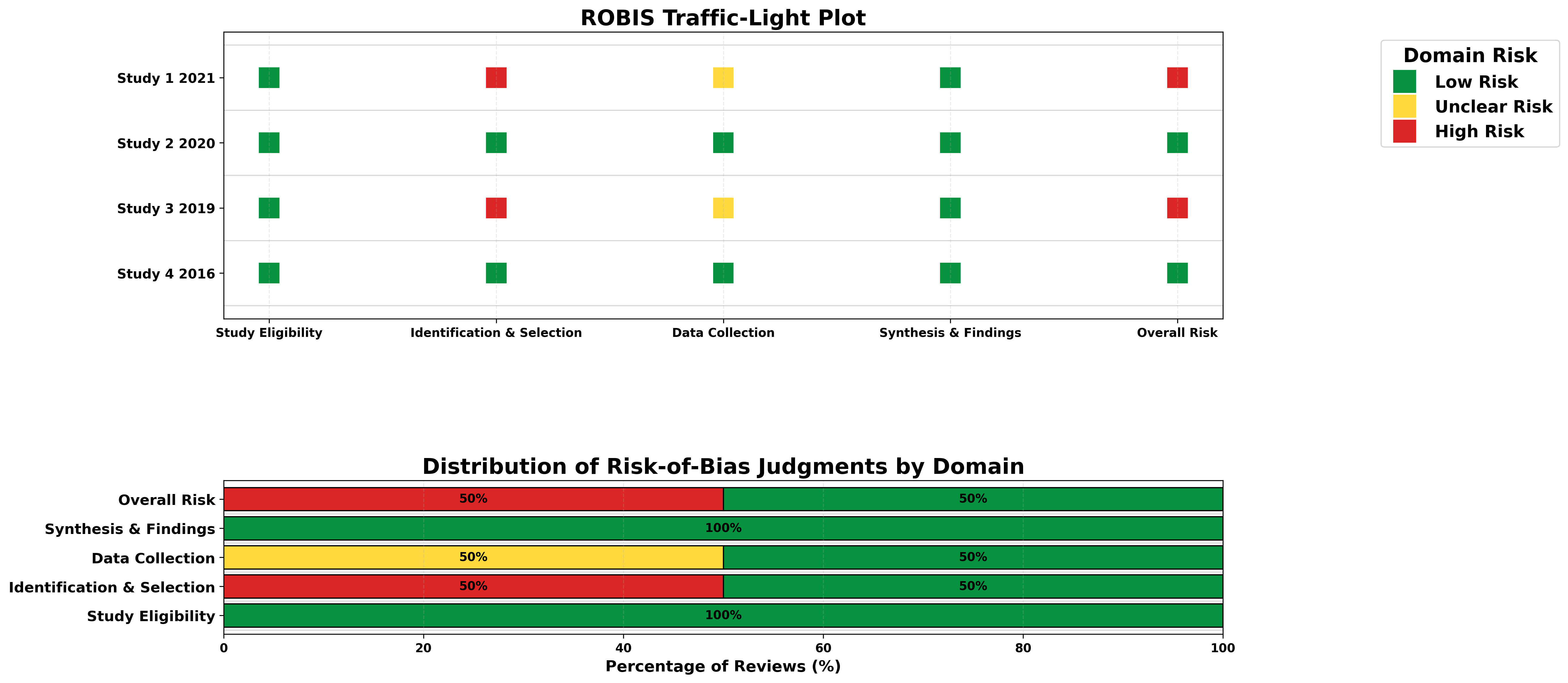

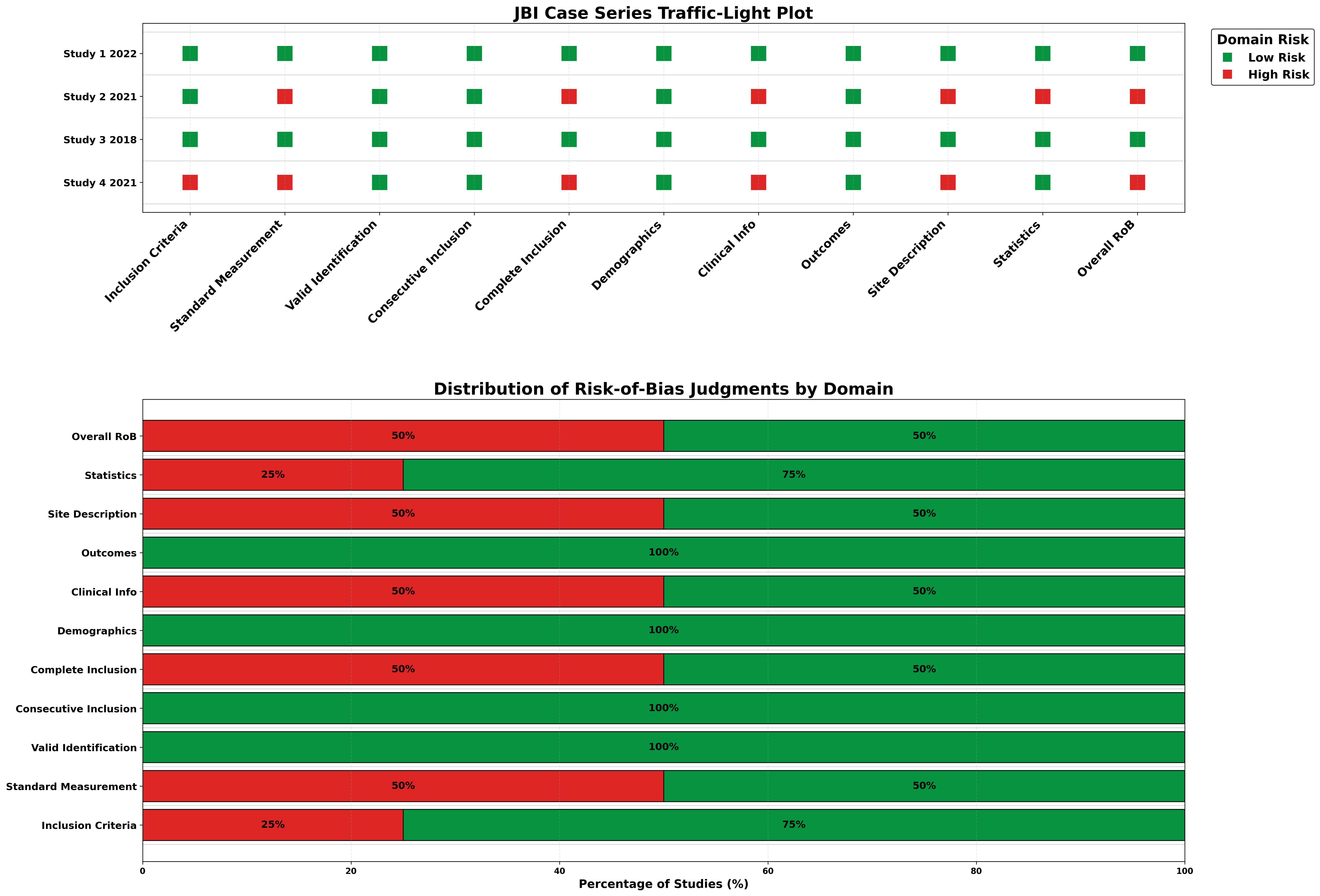

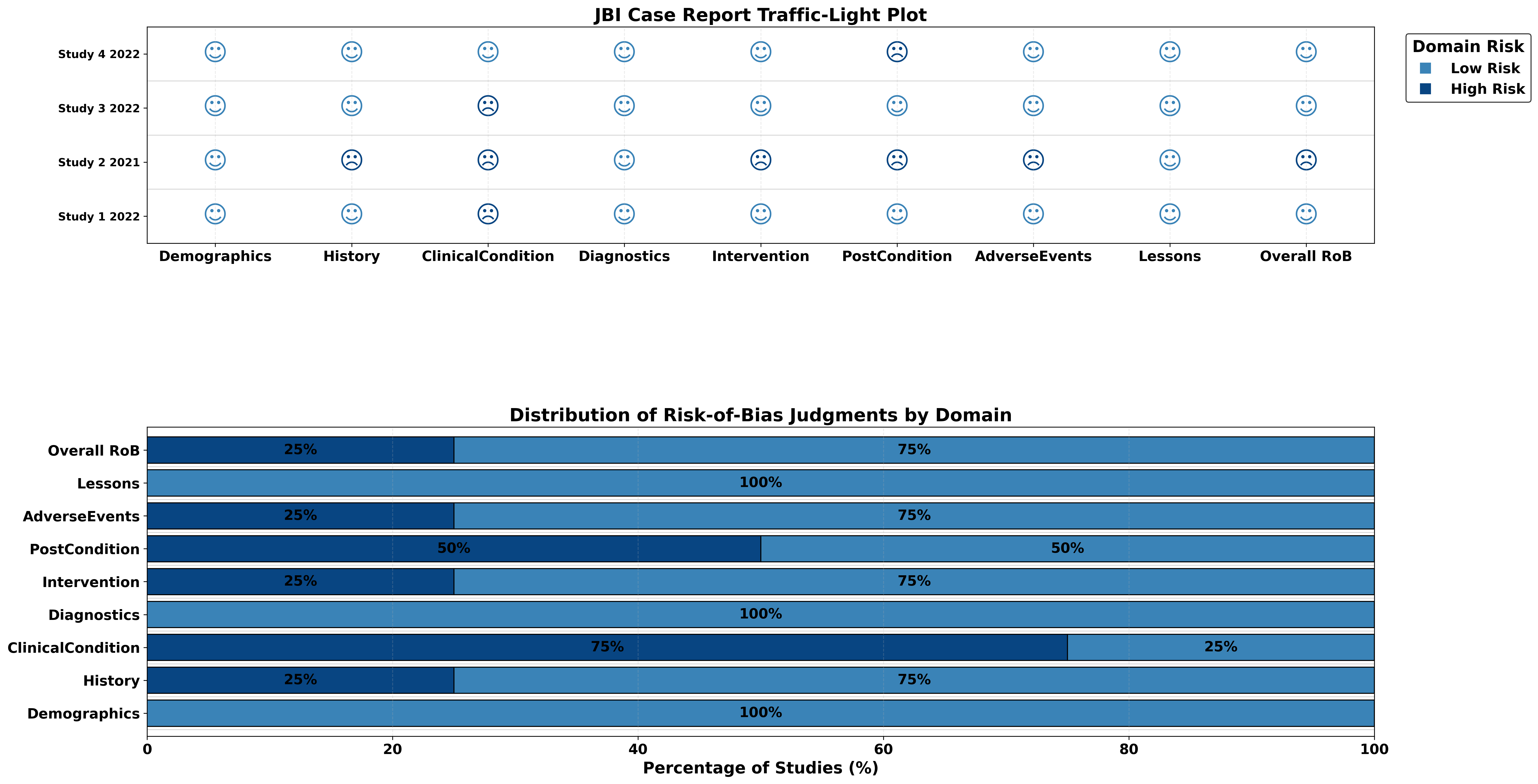

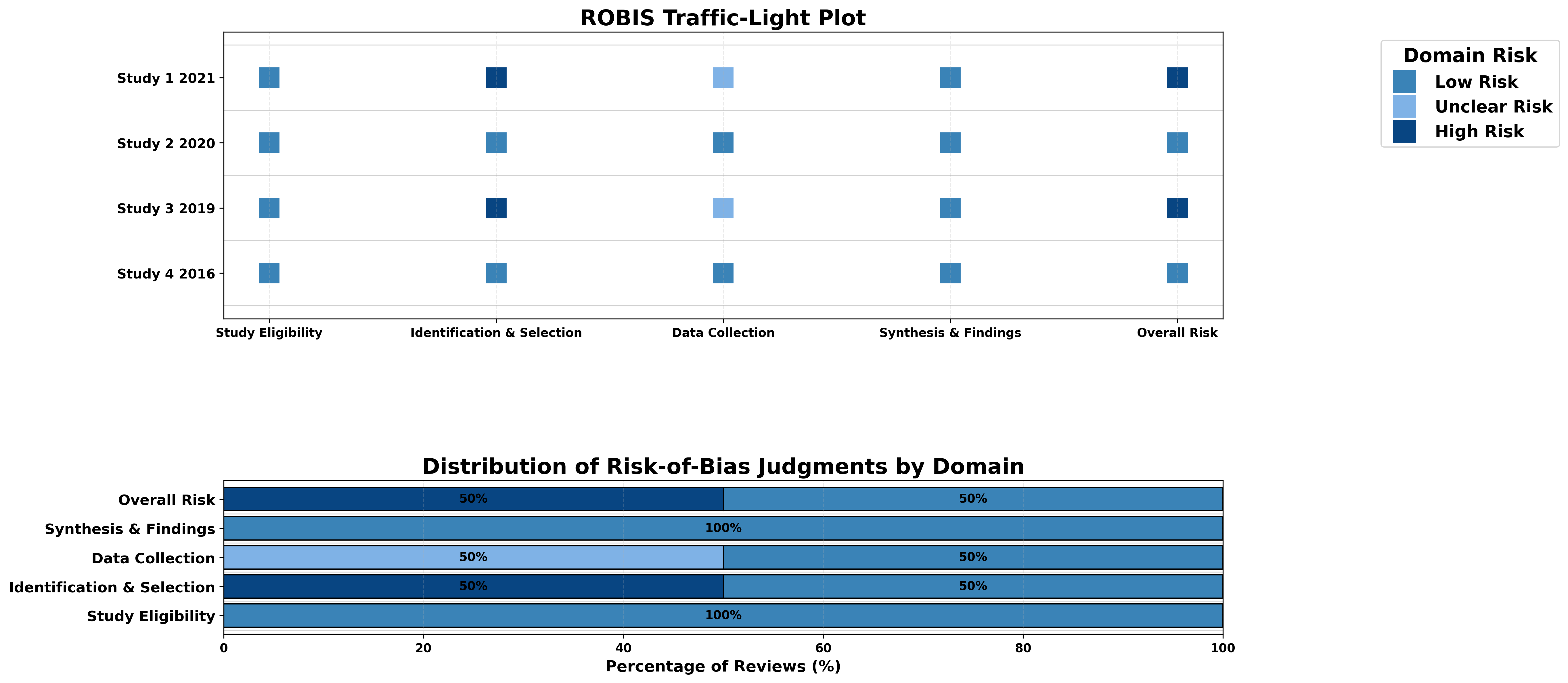

Result 1 Result 2 GRADE Result 1 GRADE Result 3 ROBIS Result 3 ROBIS Result 4 Case Report Case Report 1 Case Report 2 Series Plot 2 Series Plot 4 MMAT Result 1 MMAT Result 2 MMAT Result 3 MMAT Result 4 MMAT Result 5
Launch Critiplot

Above Streamlit web app busy? You can use the mirror:

Launch Mirror

Data Structure for Assessment Tools

Data Templates

Download ready-to-use templates for each assessment tool. Simply click to download the CSV or Excel format.

Note:

The tool is case-sensitive. Accordingly, the exact use of uppercase and lowercase characters, as presented in the Critiplot template for each, must be strictly adhered to.

NOS

CSV Excel

GRADE

CSV Excel

ROBIS

CSV Excel

JBI Case Report

CSV Excel

JBI Case Series

CSV Excel

MMAT

CSV Excel

NOS (Newcastle-Ottawa Scale)

To work correctly with Critiplot for NOS assessments, your uploaded table should follow this structure:

  • First column: Study details (Author, Year)
  • Domain columns: Each additional column corresponds to a specific NOS domain:
    • Representativeness
    • Non-exposed Selection
    • Exposure Ascertainment
    • Outcome Absent at Start
    • Comparability (Age/Gender)
    • Comparability (Other)
    • Outcome Assessment
    • Follow-up Length
    • Follow-up Adequacy
    • Total Score: Sum of the domain scores
    • Overall RoB: Overall risk-of-bias judgement for each study (Low, Moderate, High)
Author, Year Representativeness Non-exposed Selection Exposure Ascertainment Outcome Absent at Start Comparability (Age/Gender) Comparability (Other) Outcome Assessment Follow-up Length Follow-up Adequacy Total Score Overall RoB
Study 1, 2019 1 1 1 1 1 0 1 1 1 8 Low
Study 2, 2024 1 1 1 1 1 0 1 1 0 7 Moderate

GRADE

For GRADE assessments, your uploaded table should follow this structure:

  • Outcome: Name of the outcome
  • Risk_of_Bias: Risk of bias judgement (Serious, Not Serious, Very Serious)
  • Inconsistency: Inconsistency judgement (Serious, Not Serious, Very Serious)
  • Indirectness: Indirectness judgement (Serious, Not Serious, Very Serious)
  • Imprecision: Imprecision judgement (Serious, Not Serious, Very Serious)
  • Publication_Bias: Publication bias judgement (Serious, Not Serious, Very Serious)
  • Overall_Certainty: Overall certainty judgement (High, Moderate, Low, Very Low)
Outcome Risk_of_Bias Inconsistency Indirectness Imprecision Publication_Bias Overall_Certainty
Mortality Serious Not Serious Not Serious Serious Not Serious Low
Infection Serious Very Serious Not Serious Not Serious Not Serious High

ROBIS

For ROBIS assessments, your uploaded table should follow this structure:

  • Review: Review identifier
  • Study Eligibility: Risk of bias judgement (Low, Unclear, High)
  • Identification & Selection: Risk of bias judgement (Low, Unclear, High)
  • Data Collection: Risk of bias judgement (Low, Unclear, High)
  • Synthesis & Findings: Risk of bias judgement (Low, Unclear, High)
  • Overall Risk: Overall risk of bias judgement (Low, Unclear, High)
Review Study Eligibility Criteria Identification & Selection of Studies Data Collection & Study Appraisal Synthesis & Findings Overall RoB
Study 1 2021 Low High Unclear Low High
Study 2 2020 Low Low Low Low Low

JBI Case Report

For JBI Case Report assessments, your uploaded table should follow this structure:

  • Author,Year: Study identifier (e.g., "Smith, 2020")
  • Demographics: Score (0 or 1)
  • History: Score (0 or 1)
  • ClinicalCondition: Score (0 or 1)
  • Diagnostics: Score (0 or 1)
  • Intervention: Score (0 or 1)
  • PostCondition: Score (0 or 1)
  • AdverseEvents: Score (0 or 1)
  • Lessons: Score (0 or 1)
  • Total: Sum of the domain scores
  • Overall RoB: Overall risk of bias judgement (Low, High)
Author,Year Demographics History ClinicalCondition Diagnostics Intervention PostCondition AdverseEvents Lessons Total Overall RoB
Study 1,2022 1 1 0 1 1 1 1 1 7 Low
Study 2,2021 1 0 0 1 0 0 0 1 3 High

JBI Case Series

For JBI Case Series assessments, your uploaded table should follow this structure:

  • Author,Year: Study identifier (e.g., "Smith, 2020")
  • InclusionCriteria: Score (0 or 1)
  • StandardMeasurement: Score (0 or 1)
  • ValidIdentification: Score (0 or 1)
  • ConsecutiveInclusion: Score (0 or 1)
  • CompleteInclusion: Score (0 or 1)
  • Demographics: Score (0 or 1)
  • ClinicalInfo: Score (0 or 1)
  • Outcomes: Score (0 or 1)
  • SiteDescription: Score (0 or 1)
  • Statistics: Score (0 or 1)
  • Total: Sum of the domain scores
  • Overall RoB: Overall risk of bias judgement (Low, High)
Author,Year InclusionCriteria StandardMeasurement ValidIdentification ConsecutiveInclusion CompleteInclusion Demographics ClinicalInfo Outcomes SiteDescription Statistics Total Overall RoB
Study 1,2022 1 1 1 1 1 1 1 1 1 1 10 Low
Study 2,2021 1 0 1 1 0 1 0 1 0 0 5 High

MMAT (Mixed Methods Appraisal Tool)

For MMAT assessments, your uploaded table should follow this structure:

  • Author_Year: Study identifier (e.g., "Smith, 2019")
  • Study_Category: One of: Qualitative, Randomized, Non-randomized, Descriptive, Mixed Methods
  • Appropriate randomization: Score (Yes, No, Can't tell) - applicable for Randomized and Mixed Methods
  • Groups comparable at baseline: Score (Yes, No, Can't tell) - applicable for Randomized, Non-randomized, and Mixed Methods
  • Complete outcome data: Score (Yes, No, Can't tell) - applicable for all except Qualitative
  • Outcome assessors blinded: Score (Yes, No, Can't tell) - applicable for Randomized, Non-randomized, and Mixed Methods
  • Adherence to intervention: Score (Yes, No, Can't tell) - applicable for Randomized, Non-randomized, and Mixed Methods
  • Overall_Rating: Overall rating (High, Moderate, Low)
Author_Year Study_Category Appropriate randomization Groups comparable at baseline Complete outcome data Outcome assessors blinded Adherence to intervention Overall_Rating
Smith, 2019 Qualitative Yes Yes Yes Yes Yes High
Johnson, 2024 Qualitative Yes No Yes Can't tell Yes Moderate
Williams, 2019 Randomized Yes Yes Yes No Yes Moderate
Davis, 2019 Non-randomized Yes Yes Yes No Yes Moderate
Wilson, 2019 Descriptive Yes Yes Yes Yes Yes High
Taylor, 2019 Mixed Methods Yes Yes Yes Yes Yes High

Support & Contact

Have questions or need assistance with Critiplot? This tool is designed for reproducible research, and we are here to help you integrate it into your workflow.

You can open a GitHub Issue or send an email directly for guidance, troubleshooting, or feature requests.

Python Package

Critiplot is also available as a Python package for local use. You can install it via pip:

pip install critiplot

Once installed, you can use Critiplot in your Python scripts to generate risk of bias visualizations programmatically.

Benefits of using the Python package:

  • Integrate Critiplot directly into your data analysis workflows
  • Automate visualization generation for large datasets
  • Customize plots with advanced parameters
  • Use Critiplot in Jupyter notebooks and other Python environments

For documentation and examples, visit the GitHub repository or the PyPI page.

Citation

If you use Critiplot to create risk-of-bias plots for your study, please remember to cite the tool.

Sahu, V. (2025). Critiplot: A Critical Appraisal Plot Visualiser for Risk of Bias in Systematic Reviews and Meta-Analyses (v2.0.0). Zenodo. https://doi.org/10.5281/zenodo.17236600
